Promobot V.4 se comunica con las personas, se mueve de forma autónoma y se conecta con servicios de terceros y sistemas externos: desde bases de datos hasta aplicaciones. El robot es autónomo: no necesita control humano para su trabajo.

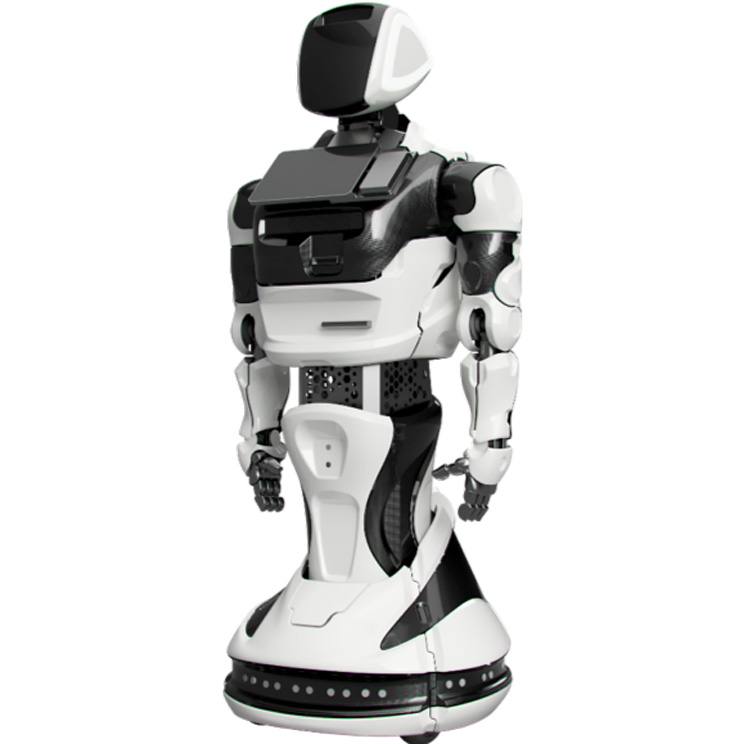

Promobot V4
Descripción
Promobot V.4 se comunica con las personas, se mueve de forma autónoma y se conecta con servicios de terceros y sistemas externos: desde bases de datos hasta aplicaciones. El robot es autónomo: no necesita control humano para su trabajo.
- Head of the Robot.
- Camera.
- Microphone.
- Touch sensor of “head”.
- RGB Matrix of emotions.
- Interactive LCD screen for information display with touch controls..
- Speakers for audio playback.
- Printer for printing photos.
- 3D sensor.
- «Robotic arms»,equipped with touch sensors.
- PIN pad.
- Movement platform.
- Cheque printer.
- Sensor system to avoid obstacles while moving.
- Charging station searching camera.
Especificaciones Técnicas
| Parameter | Characteristics |
|---|---|
| Robots dismensions | Min: 1466х782х730 (HхWхL), mm Max: 1566x2082x730 (HхWхL), mm |
| Charging station dismensions | 700x650x300 (HхWхL), mm |
| Transportation trunk | 1615x880x980 (HхWхL), mm |
| Time of charging | Via charging station: up to 10 hours. Via wire: up to 8 hours |
| Battery life | Up to 8 hours |
| Movement speed | 0,3 km/h |
| Drive | 2 wheels |
| Robotic arms | 2 pcs, 7 degrees of freedom |
| Head turning | 2 degrees of freedom |
| Torso turning | 3 degrees of freedom (depends of specification) |
| Camera | Face recognition: CMOS 1/2.8”, up to 25 (30) fps, resolution 1920×1080
Telepresence mode: up to 30 fps, resolution 640х480 |
| Microphone | Omnidirectional |
| Speakers | 25 watts 2 pcs. |
| Display | 10.1” touchscreen, resolution 1280×720 |
| Sensors | Ultrasonic 16 pcs. 3D sensor 1 pcs. Sensor of tuch 4 pcs. |
| Body material | Plastic |
| Color | Black+white |
| Diode matrix of face | RGB (full colour) |
| Pronunciation of the speech modules | Via speech synthesis |
| Random movement | Yes |
| Autonomous searching of charging station | Yes |
| Service of linguistic database and phrases | Yes |
| Printer for printing photos | Yes |
Opcional
| Hardware architecture | Necessary for placement of special equipment: printers, dispenser, terminal One set is purchased for all devices |
|---|---|
| Printer for printing photos | Amount of placement papers 18 pcs, Capacity of cartridge 36 photos, photos dimensions 10*15 |
| Possibility of PIN pad placement | Standard terminal: PAX D200. Dimensions: 72мм*120мм |
| Printer for check printer | Dimensions of tape 80mm*100mm |
